Equal Temperaments

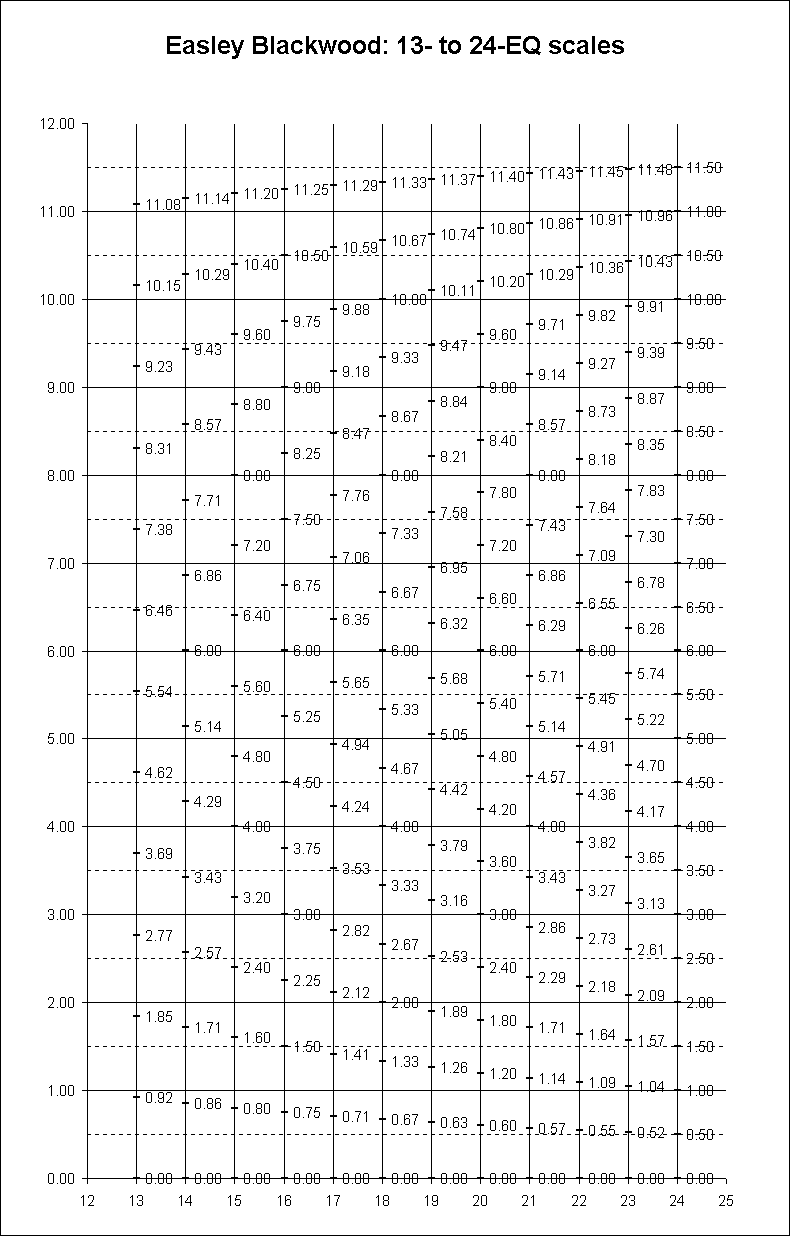

Graphs of the Semitone values of pitches in different Equal Temperaments

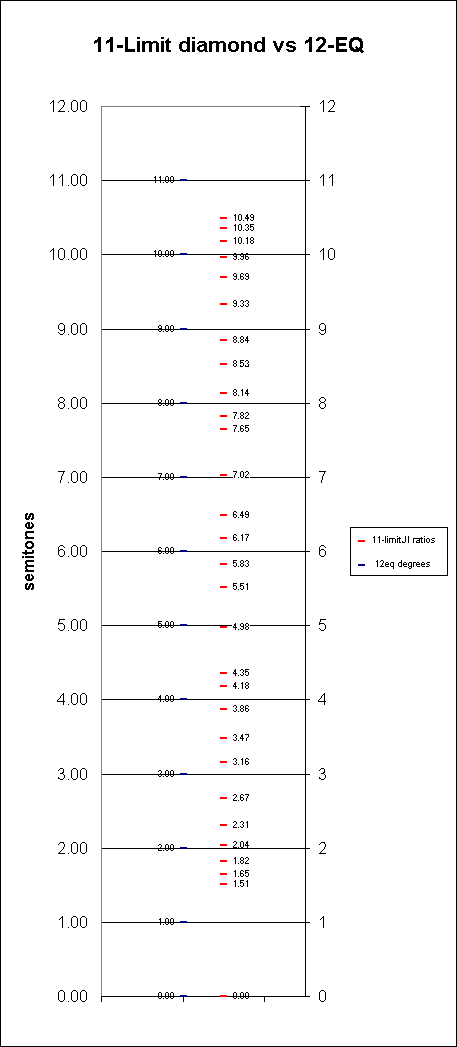

And here are comparisons of the ratios in the 11-Limit Tonality Diamond (as used by Harry Partch) with some of the more popular ETs.

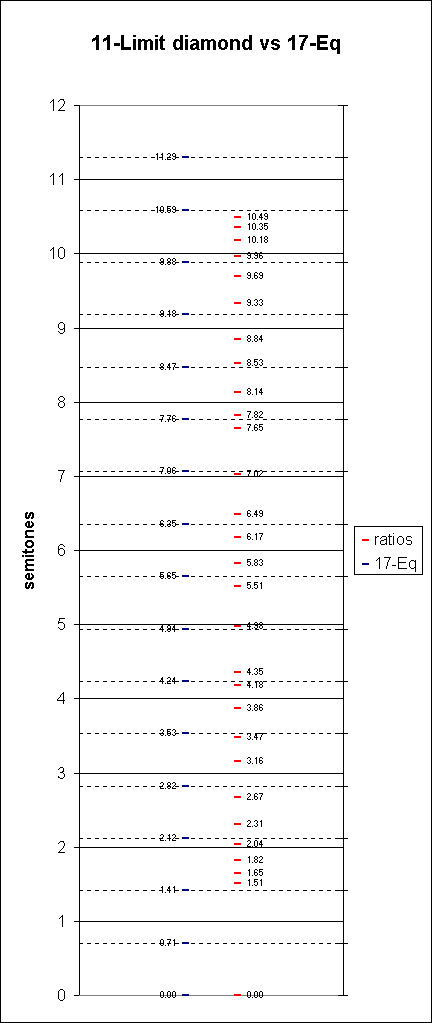

ChartObject 11-Limit diamond vs 17-Eq

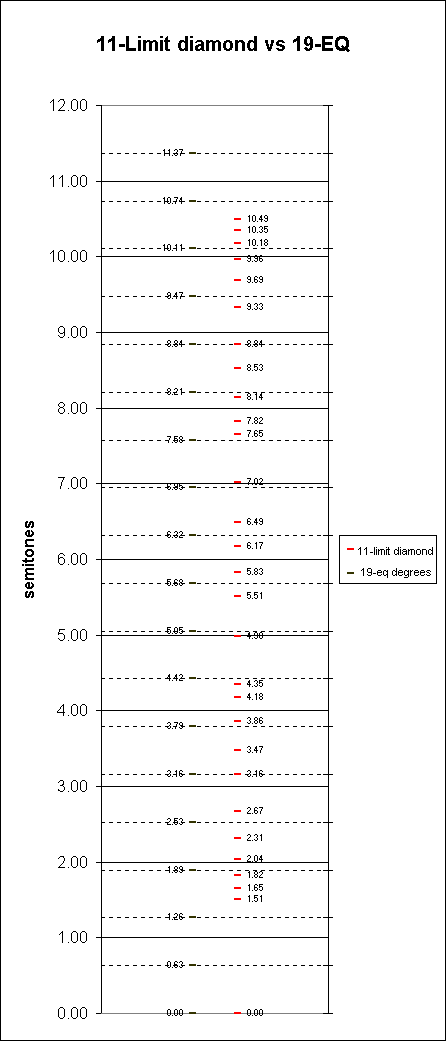

ChartObject 11-Limit diamond vs 19-EQ

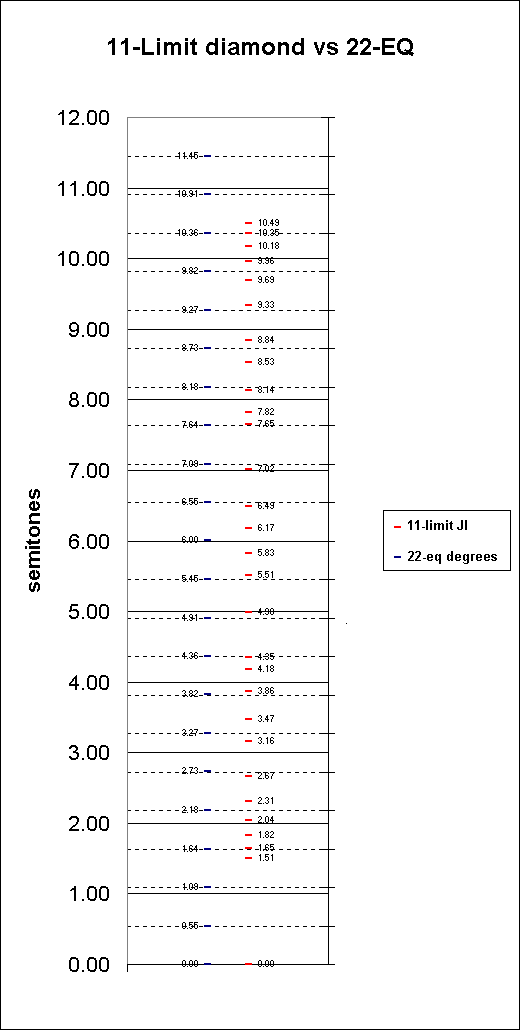

ChartObject 11-Limit diamond vs 22-EQ

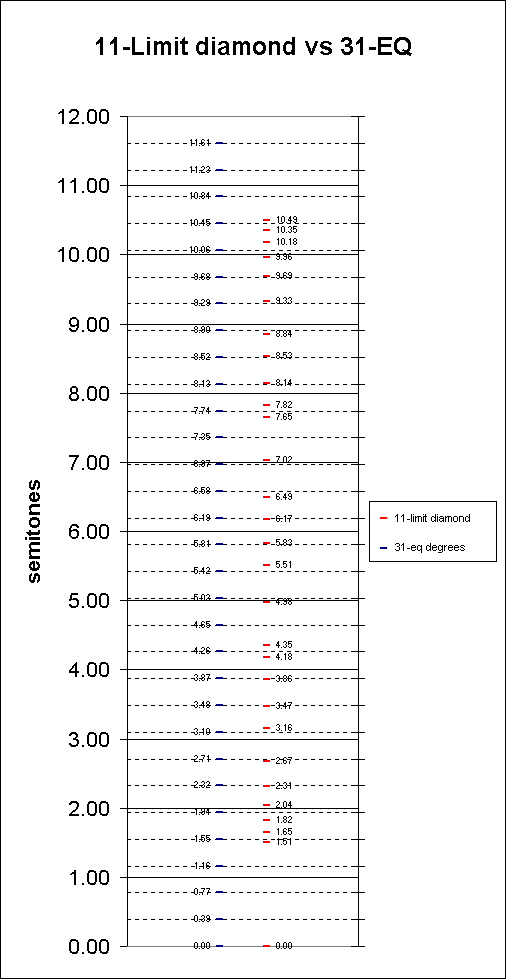

ChartObject 11-Limit diamond vs 31-EQ

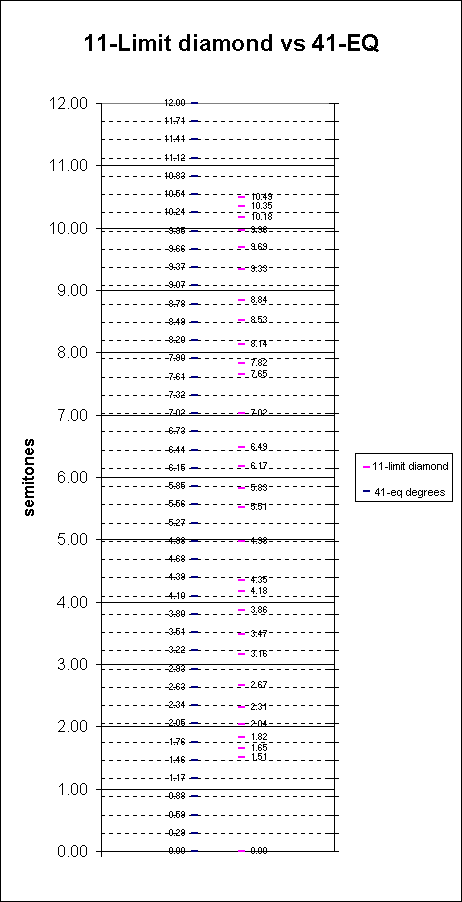

ChartObject 11-Limit diamond vs 41-EQ

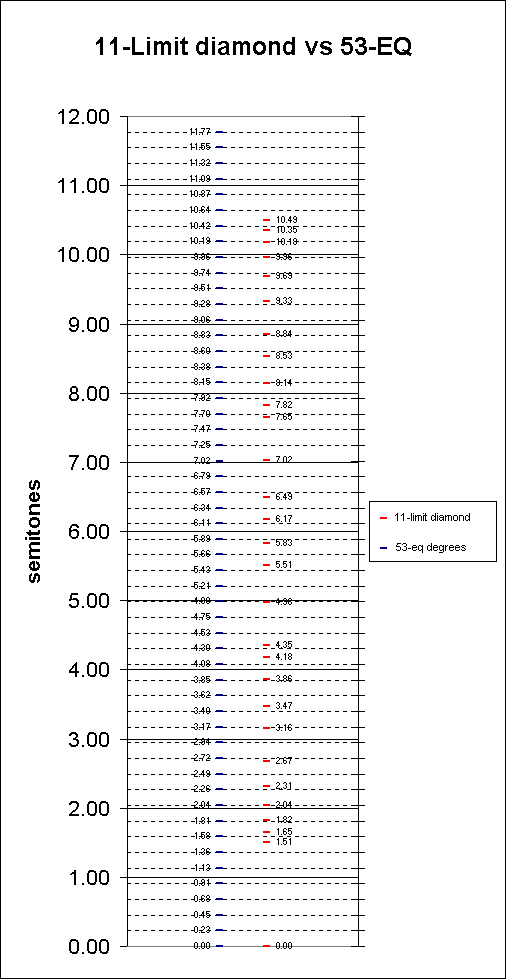

ChartObject 11-Limit diamond vs 53-EQ

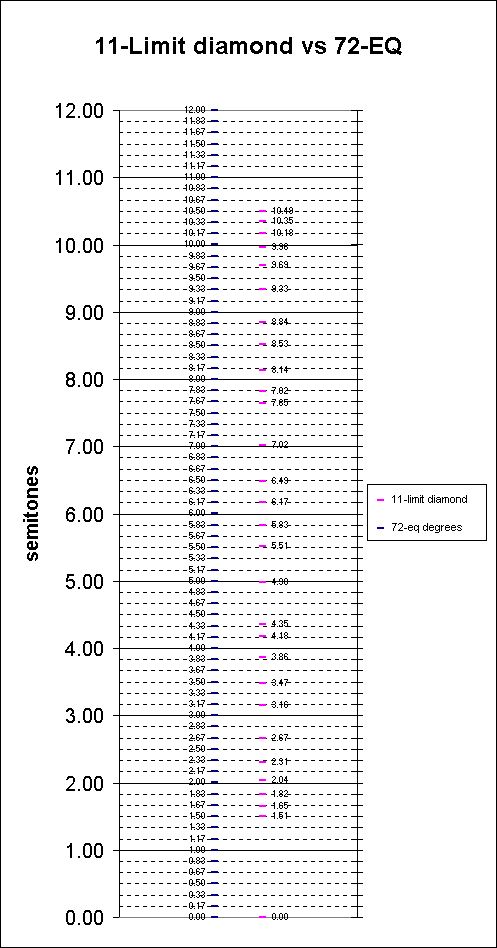

ChartObject 11-Limit diamond vs 72-EQ


Updated 2000.1.19, 1999.3.13
By Joe Monzo
